Sun Blade 1000 Workstation, Dual 750MHz CPU, 1GB RAM,Creator3D Series 3 Graphics, DVDFamily Part# A28Code Name: ExcaliburModel: Blade 1000Manufacturer: Sun MicrosystemsPart# 600-5978-02Description: Sun Blade 1000 - 2x 750MHz CPU - 1024MB RAM - Creator3D Series 3 FFB2+ Graphics - DVDCondition: Clean - 8 out of 10 easy, Tested & guaranteed working
This Sun Blade 1000 Configuration:
- 540-4477-03 - Sun Blade 1000 Excalibur Chassis Assembly
- 501-5938 - System Board / 0MB FRU (501-4143 / 501-5938 / 501-6230 / 501-6560)
- 501-5675 - 750MHz UltraSPARC III Module, 8MB Cache X6990A / 501-5895 501-5969 501-5988 501-6196(2x 750MHz CPUs)
- 501-5401 - 256MB 232p 3.3V ECC Memory DIMM x4(1GB Total RAM) X7053A
- 501-5690 - Creator3D Series 3 (FFB2+) PCI Graphics, X3670A
- 390-0025 - 10X DVD-ROM Drive - SCSI Interface - 1 5/8" Height - Medium Grey Bezel (Toshiba SD-M1401 / SD-M1711)
- 370-3718 - 120 mm Fan (x2) with 330-2416 Fan Bracket
- 300-1357 - 670 Watt AC Input Power Supply (Sony APS-112 / Type A119-U) 300-1411
- without Triple Density Floppy Drive 370-2730
The Sun Blade 1000 can have up to 2 CPUs installed with an 8GB RAM maximum while supporting 2 Fiber Channel HDDs.
Sun Blade 1000 Manufacturer Notes:
- The minimum Sun Blade 1000 operating system is Solaris 8 10/00.
- The system will not boot without a CPU module in Slot 0.
- If only one CPU module is installed, it must be in Slot 0, and Slot 1 should be covered with a CPU Shroud Cover.
- Mixing UltraSPARC III speeds in the Sun Blade 1000 is supported.
- Mixing UltraSPARC III Cu module speeds is not supported.
- Mixing UltraSPARC III and UltraSPARC III Cu modules is not supported.
- The 900MHz UltraSPARC III Cu requires OBP >=4.4 version 6.
- Support for 1GHz processors is in OBP 4.5 Version 10.
- The minimum recommended OBP for 1015/1050MHz is 4.5 Version 16.
Memory Notes:
- The minimum requirement is four DIMMs of equal size in any group.
- DIMMs can be installed in any group order.
- Each group addresses 4GB of memory.
- The DIMMs in Group 0 do not need to be the same size as those in Group 1.
- The 501-6173/6174/6175 are 13mm taller than other listed DIMMs.
- Option 7052A changed from 501-5031 to 501-6109 in August 2003. (The last shipment date of Options 7052A and X7052A was in April 2004.)
- Memory slots (Jxxxx) map to same-numbered DIMMs (Uxxxx)

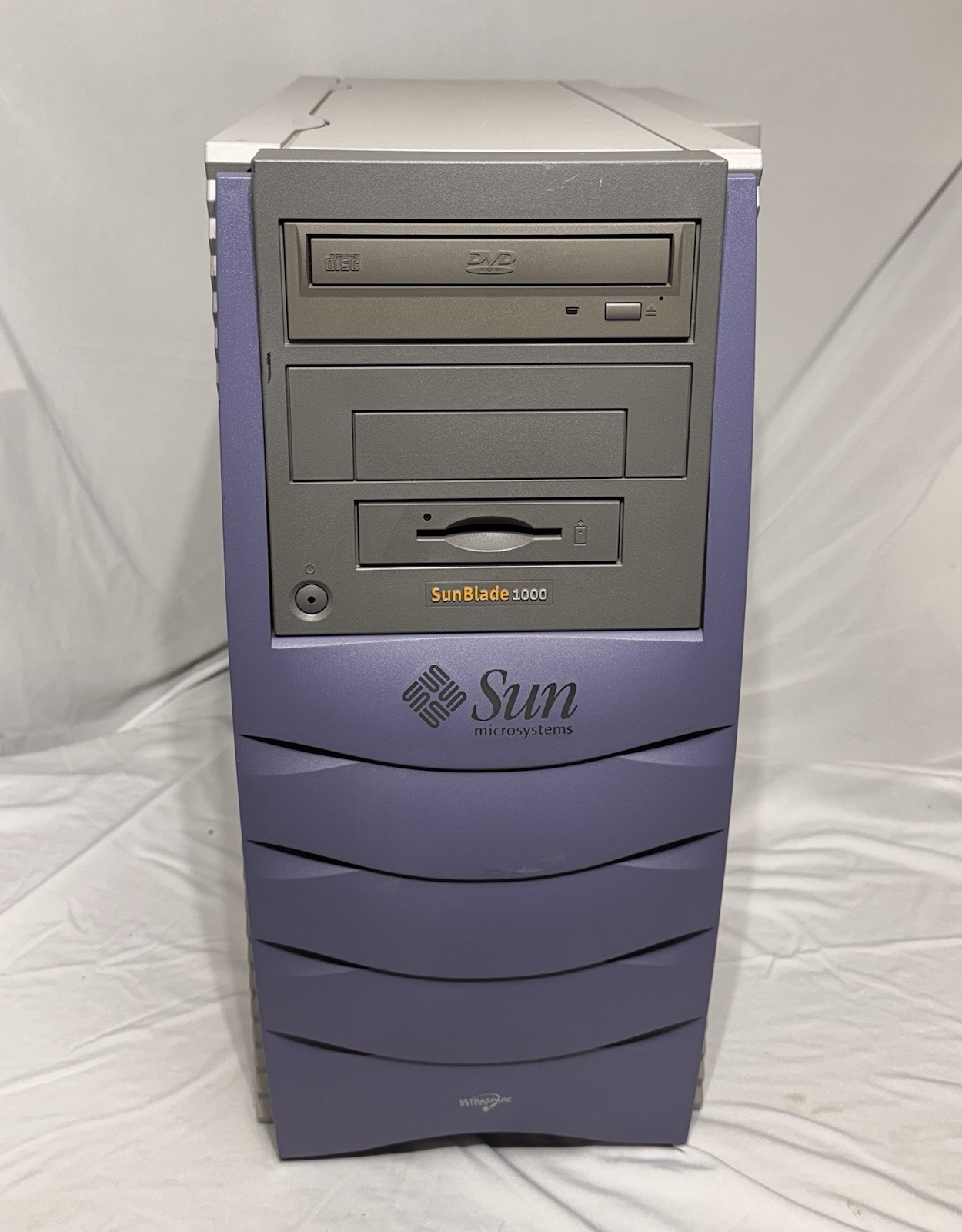

You are purchasing the Sun Blade 1000 Workstation pictured.SN: 111C0370
Guaranteed Working30-Day Warranty
Cosmetic condition is consistent with normal use and may include minor scuffs or surface wear.Please refer to photos for the exact condition. 8 out of 10.
Professionally packed using new boxes and materials to ensure safe delivery of sensitive equipment.
This system is large and weighs about 70lbs boxed in a 36 x 24 x 20 inch Box.
