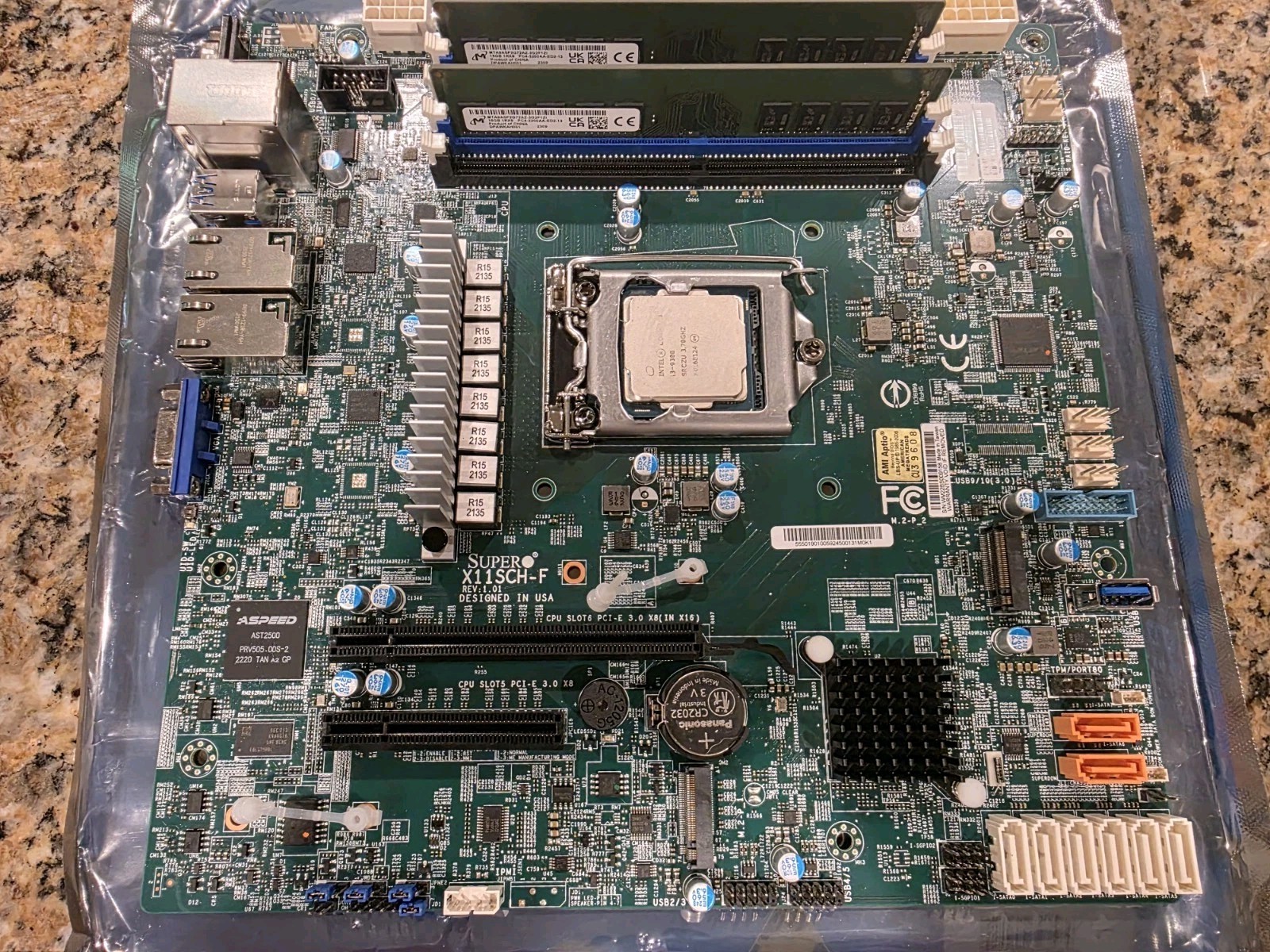

Supermicro X11SCH-F MicroATX LGA1151 Intel Core i3-9300 3.7GHz 32GB ECC DDR4 For Sale

This was the first server motherboard I ever purchased to learn Linux. It never did get a lot of use so I am selling it on here. This would make a perfect motherboard for a home NAS system as it has 8 sata ports, 2 Gen3 NVME m.2 slots, and a x8 and x4 Gen3 PCIE slots. Throw in a small gpu and you have a great home system for plex or jellyfin. The CPU is an I3 9300. The reason I went with that was that back then the lower SKUs were the ones that had ECC support. The ram is 32GB (2x16GB) Micron ECC Udimms. Any questions please ask before offerding. BMC has been updated. BIOS is an older version but it requires purchasing the OOB license. It is currently 1.8. 2.6 is the current version. The licenses are $27 last time I purchased one from Supermicro. This also includes four new sata cables, documents, io shield, and cpu cover which has the BMC login info.I will ship UPS, USPS, or FedEx. Make sure you select your preference in checkout.Key Features2 SuperDOM with built-in power8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDPIntel® C246 chipsetUp to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slotsExpansion slots: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x8 slots2x M.2 NGFF connectorsM.2 Interface: PCIe 3.0 x4Form Factor: 2280, 22110Key: M-Key8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 102 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
EssentialsProduct Collection9th Generation Intel® Core™ i3 ProcessorsCode NameProducts formerly Coffee LakeVertical SegmentDesktopProcessor Numberi3-9300Lithography14 nmCPU SpecificationsTotal Cores4Total Threads4Max Turbo Frequency4.30 GHzIntel® Turbo Boost Technology 2.0 Frequency‡4.30 GHzProcessor Base Frequency3.70 GHzCache8 MB Intel® Smart CacheBus Speed8 GT/sTDP62 WSupplemental InformationMarketing StatusDiscontinuedLaunch DateQ2\'19Servicing StatusESU Notification IssuedEnd of Servicing Updates DateMonday, June 30, 2025Embedded Options AvailableNoUse ConditionsPC/Client/TabletDatasheetView nowMemory SpecificationsMax Memory Size (dependent on memory type)64 GBMemory TypesDDR4-2400Max # of Memory Channels2Max Memory Bandwidth37.5 GB/sECC Memory Supported ‡YesGPU SpecificationsGPU Name‡Intel® UHD Graphics 630Graphics Base Frequency350 MHzGraphics Max Dynamic Frequency1.15 GHzGraphics Video Max Memory64 GB4K SupportYes, at 60HzMax Resolution (HDMI)‡4096 x 2304@24HzMax Resolution (DP)‡4096 x 2304@60HzMax Resolution (eDP - Integrated Flat Panel)‡4096 x 2304@60HzDirectX* Support12OpenGL* Support4.5Intel® Quick Sync VideoYesIntel® InTru™ 3D TechnologyYesIntel® Clear Video HD TechnologyYesIntel® Clear Video TechnologyYes# of Displays Supported ‡3Device ID0x3E91Expansion OptionsScalability1S OnlyPCI Express Revision3.0PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4Max # of PCI Express Lanes16Package SpecificationsSockets SupportedFCLGA1151Max CPU Configuration1Thermal Solution SpecificationPCG 2015C (65W)TJUNCTION100°CPackage Size37.5mm x 37.5mmAdvanced TechnologiesIntel® Optane™ Memory Supported ‡YesIntel® Turbo Boost Technology ‡2.0Intel® Hyper-Threading Technology ‡NoIntel® Transactional Synchronization ExtensionsNoIntel® 64 ‡YesInstruction Set64-bitInstruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2Idle StatesYesEnhanced Intel SpeedStep® TechnologyYesThermal Monitoring TechnologiesYesIntel® Identity Protection Technology ‡YesSecurity & ReliabilityIntel® Secure KeyYesIntel® AES New InstructionsYesIntel® Software Guard Extensions (Intel® SGX)Yes with Intel® MEIntel® Memory Protection Extensions (Intel® MPX)YesIntel® OS GuardYesIntel® Trusted Execution Technology ‡NoExecute Disable Bit ‡YesIntel® Boot GuardYesIntel® Stable IT Platform Program (SIPP)NoIntel® Virtualization Technology (VT-x) ‡YesIntel® Virtualization Technology for Directed I/O (VT-d) ‡YesIntel® VT-x with Extended Page Tables (EPT) ‡Yes
