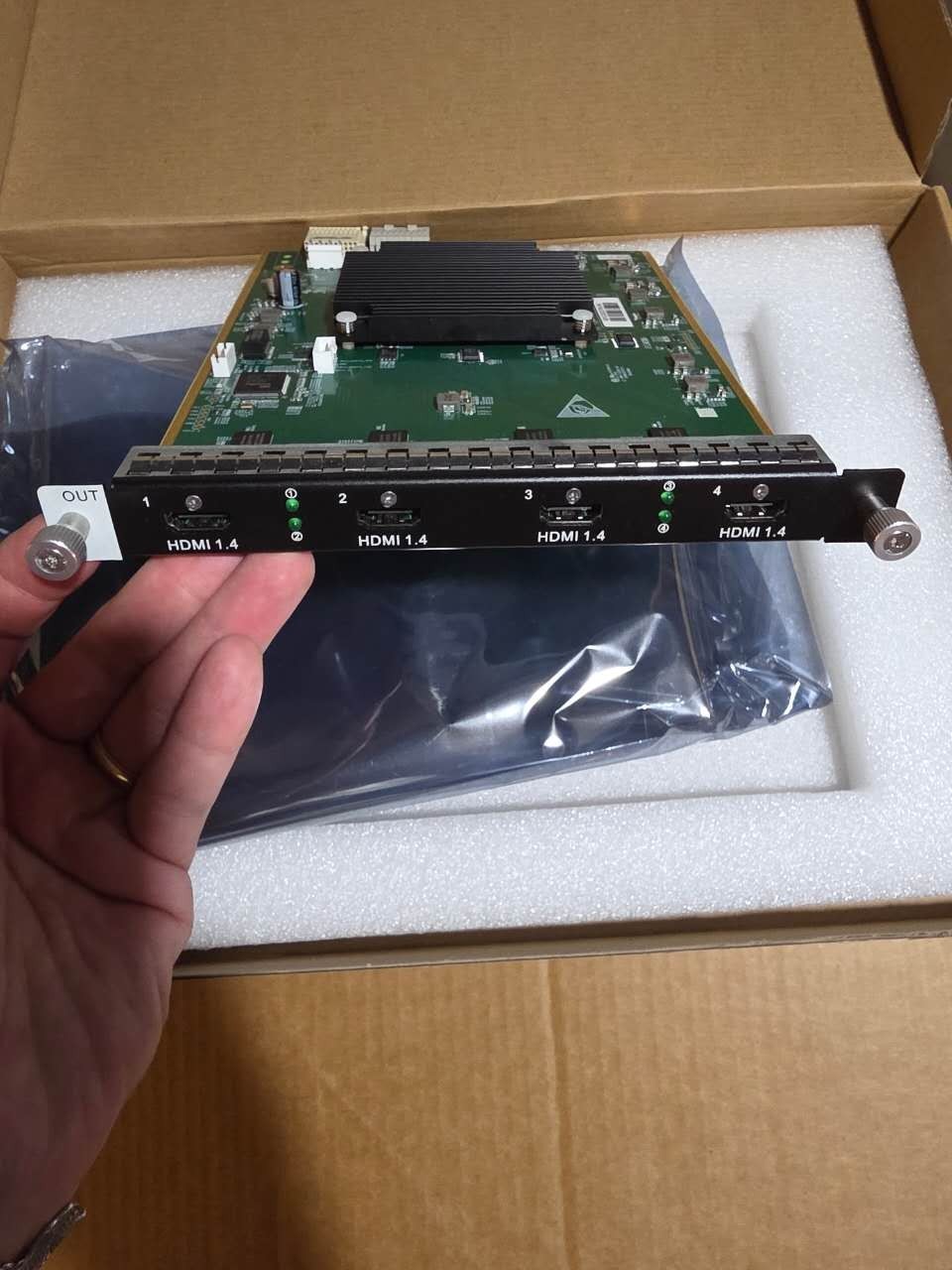

NovaStar H-Series 4 x HDMI Output Card For Sale

A four-output HDMI card for H-Series processors that sends processed video to up to four displays, projectors, or recorders. It runs as four single-link HDMI 1.4 outputs (2048×1152@60Hz each) or as dual-link for higher resolution (up to 4096×2160@30Hz), with 144Hz support. Compatible with the H2, H5, H9, H15 and H20 modular video wall processors.

• 4x HDMI 1.4 Outputputs for efficient video signal handling
• Designed for use with NovaStar H Series video processors
• Supports high-definition video resolutions for clear image quality
• Ideal for live event settings, large digital displays, and complex signage systems
• Ensures reliable and stable signal transmission for uninterrupted performance
• User-friendly design for easy integration into professional video systems
• Perfect for seamless video routing and control in demanding applications

4x HDMI 1.4

Support for single output, dual link output and 144Hz output

 Single link output:

− Four connectors are all available for output.

− Each connector supports the maximum resolution of

2048×1152@60Hz.

− Custom resolutions:

Max. width: 2560 pixels (2560×972@60Hz)

Max. height: 2560 pixels (884×2560@60Hz)

− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.

− Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.

 Dual link output:

− Connectors 2 and 4 are available for output.

Connector 1 copies the output on connector 2, and connector 3

copies the output on connector 4.

− Each connector supports the maximum resolution of

− Custom resolutions:

Max. width: 4096 pixels (4096×1124@60Hz)

Max. height: 4096 pixels (1014×4096@60Hz)

− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.

− Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.

Status LEDs:

 On: The output connector is connected normally.

 Off: The output connector is not connected.

Specifications:

 Weight: 500 g

 Dimensions: 193 mm × 247.12 mm × 21.15 mm

 Power consumption: 22.1 W
